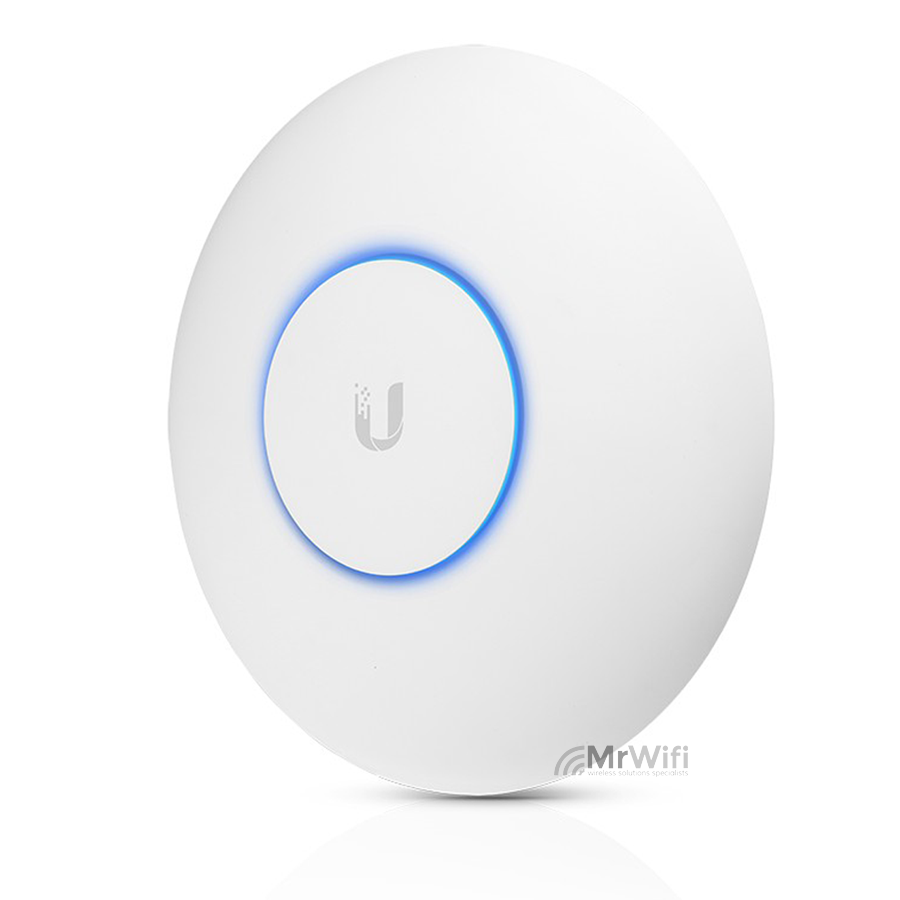

UniFi XG Access Point
UAP-XG
UniFi XG Access Point, The World's Highest Capacity WiFi AP
Quad-Radio 802.11ac Wave 2 Access Point with Dedicated Security Radio
Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.
Features:
10Gigabit Ethernet Support
4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
Dual 5 GHz 802.11ac Wave 2 Radios
3.466 Gbps Combined Radio Rate in 5 GHz
800 Mbps Radio Rate in 2.4 GHz
Dedicated Security Radio with Persistent Threat Management
1,500 Client Association Limit
802.3bt Power Injector Included
(UAP-XG)
UniFi XG Access Point
Pack Includes:
- 1 x UniFi XG Access Point
- 1 x Mounting Plate
- 1 x Ceiling Backing Plate
- 4 x Plate Ceiling Screws
- 4 x Keps Nuts
- 2 x T-Bar Mounts
- 2 x T-Bar Screws
- 1 x Allen Wrench
- 4 x Wall Screws
- 4 x Screw Anchors
- 1 x Release Tool
- 1 x Cable Feed Plug
- 1 x Gigabit PoE (50V, 1.2A)*
- 1 x Power Cord*
- Quick Start Guide
* Included only with the single-pack of the UAP-XG
Ubiquiti UniFi Security Gateway Pro 4 - Specifications
| UAP-XG | |
|---|---|
| Dimensions | 228 x 228 x 50 mm (8.98 x 8.98 x 1.97") |
| Weight With Mounting Kits |
1.20 kg (2.65 lb) 1.35 kg (2.98 lb) |

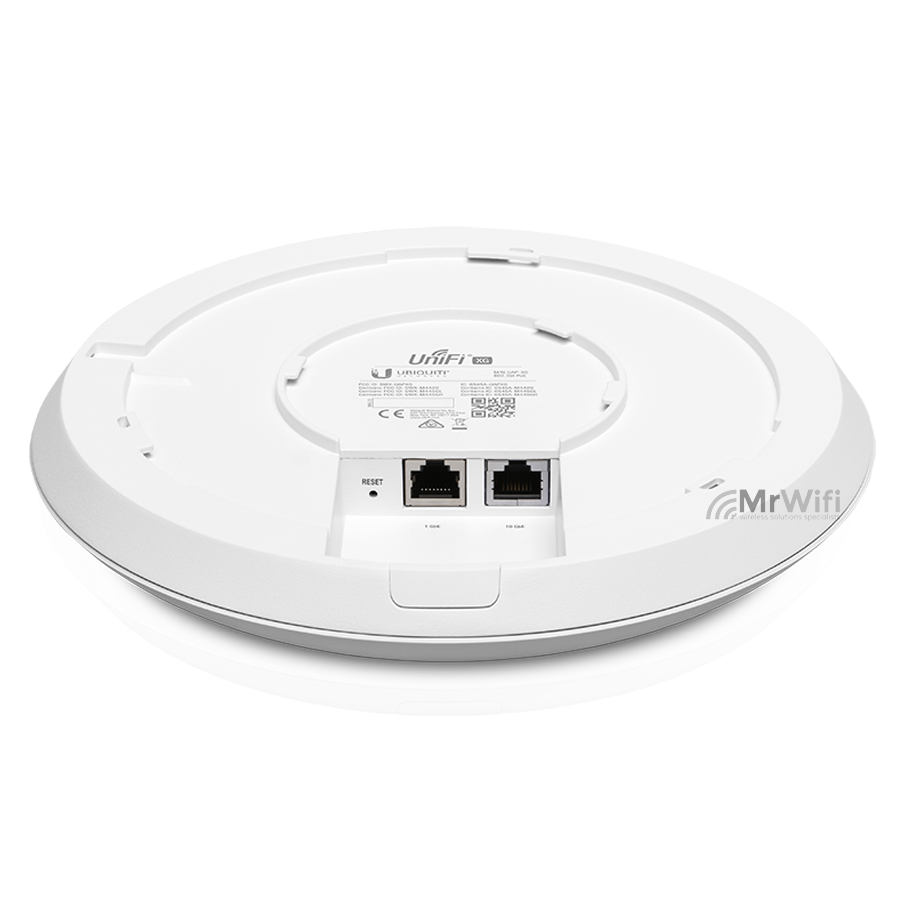

| Networking Interface | (1) 10/100/1000 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
| Buttons | Reset |
| Power Method | 802.3bt PoE |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | PoE Injector 50VDC, 1.2A Gigabit |
| Power Save | Supported |
| Beamforming | Supported |
| Maximum Power Consumption | 31W |
| Radios | 2.4 GHz, (2) 5 GHz, Security |
| Maximum TX Power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
| Antennas 2.4 GHz 5 GHz |
(2) Dual-Port, Dual-Polarity Antennas, 6 dBi each (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling/Junction Box (Kits Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1500 |
| Supported Data Rates (Mbps) | |
| Standard | Data Rates |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
Shipping Specifications
| SKU | UAP-XG |
| Model # | UAP-XG |
| Barcode # | 817882023405 |
| Brand | Ubiquiti |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.228m |
| Shipping Height | 0.060m |
| Shipping Length | 0.228m |
| Shipping Cubic | 0.003119000m3 |
| Unit Of Measure | ea |
