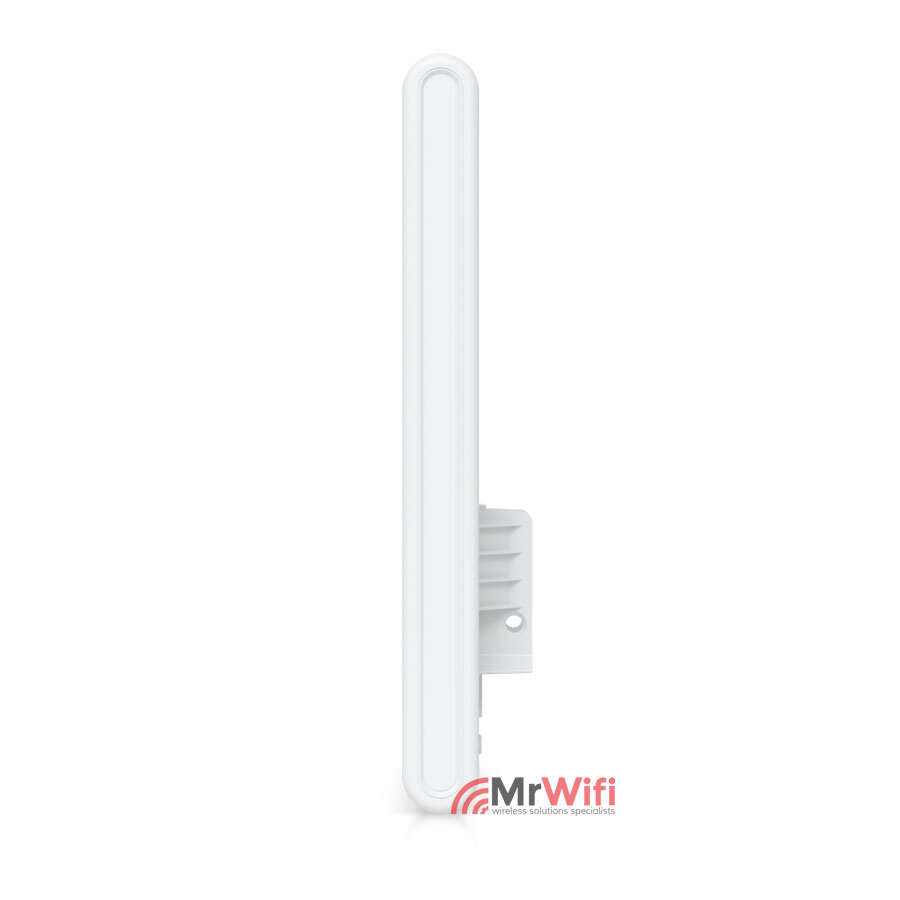

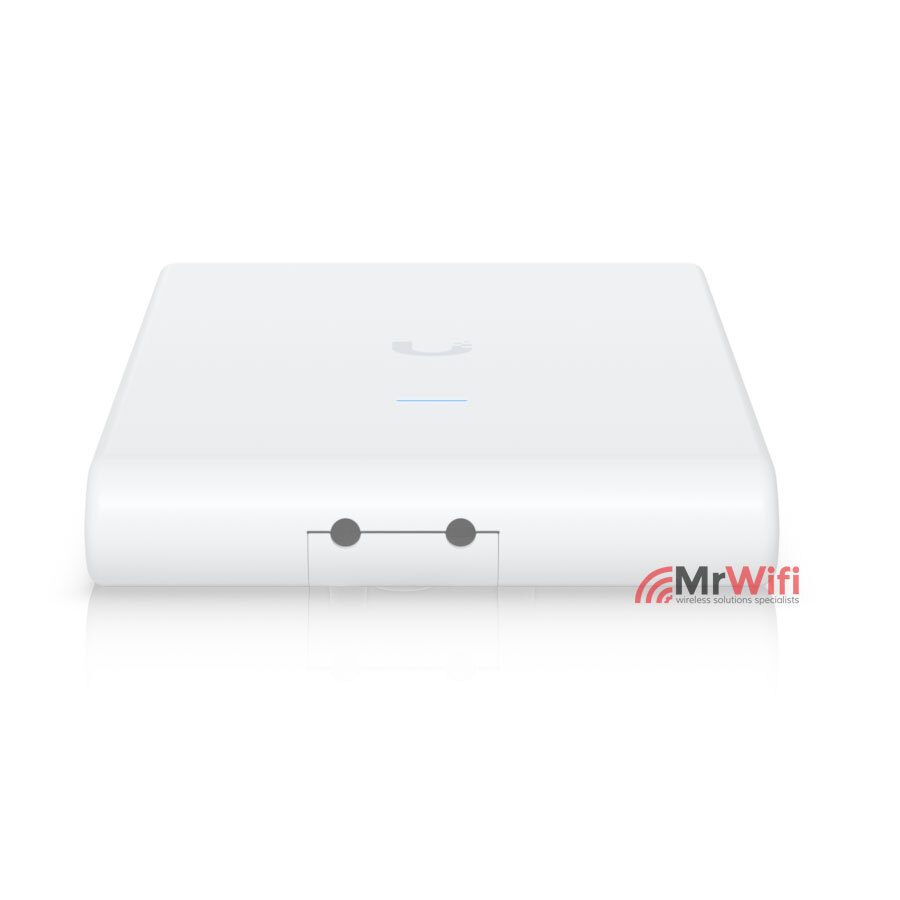

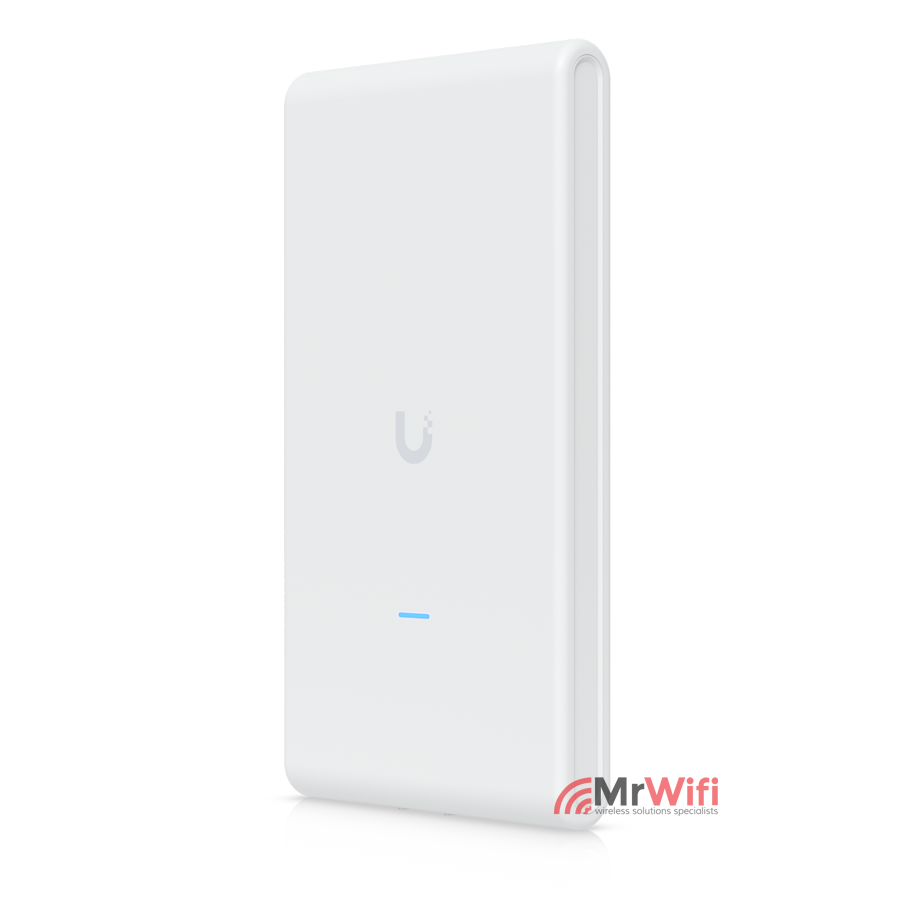

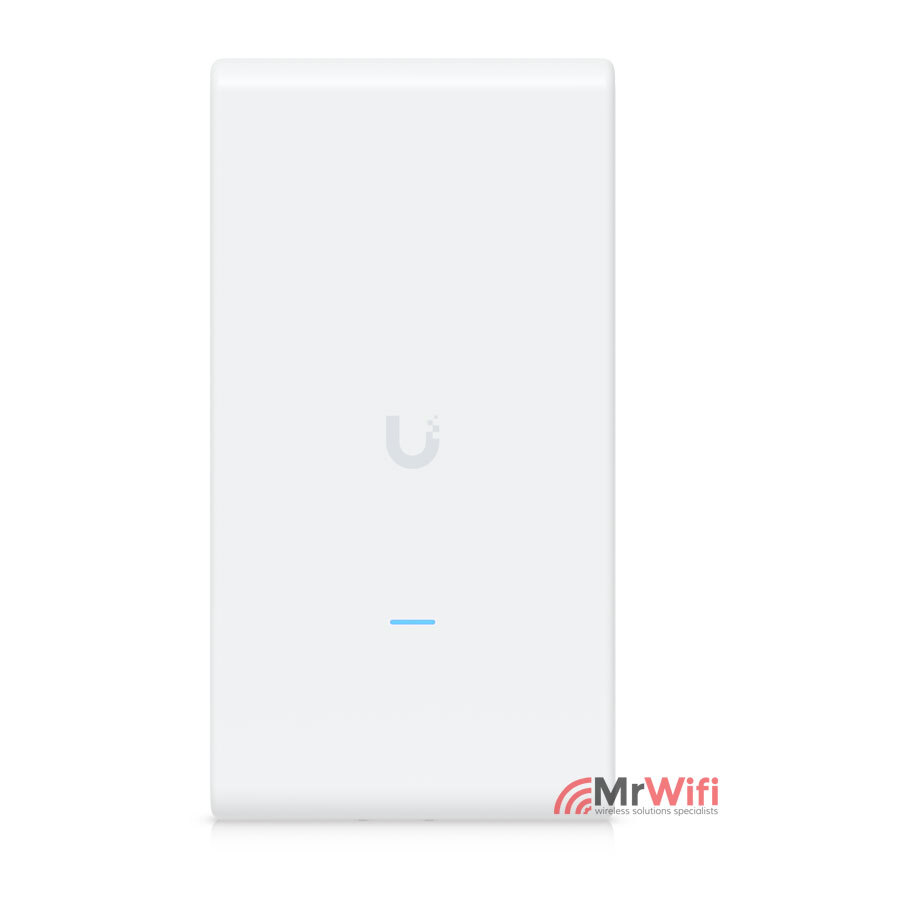

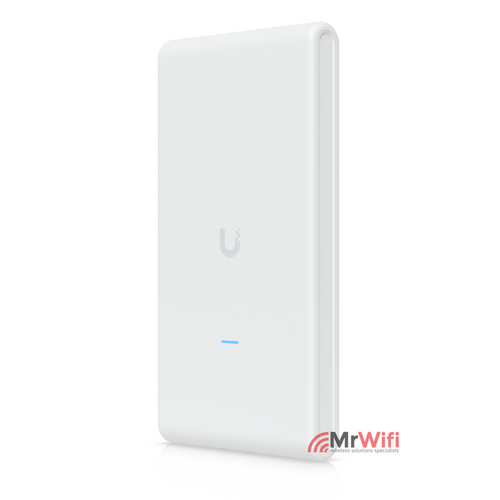

WiFi 6 AP Indoor/outdoor with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
U6-Mesh-Pro
$443.02
Sold Out
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
Ubiquiti Unifi U6 Mesh Pro Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE

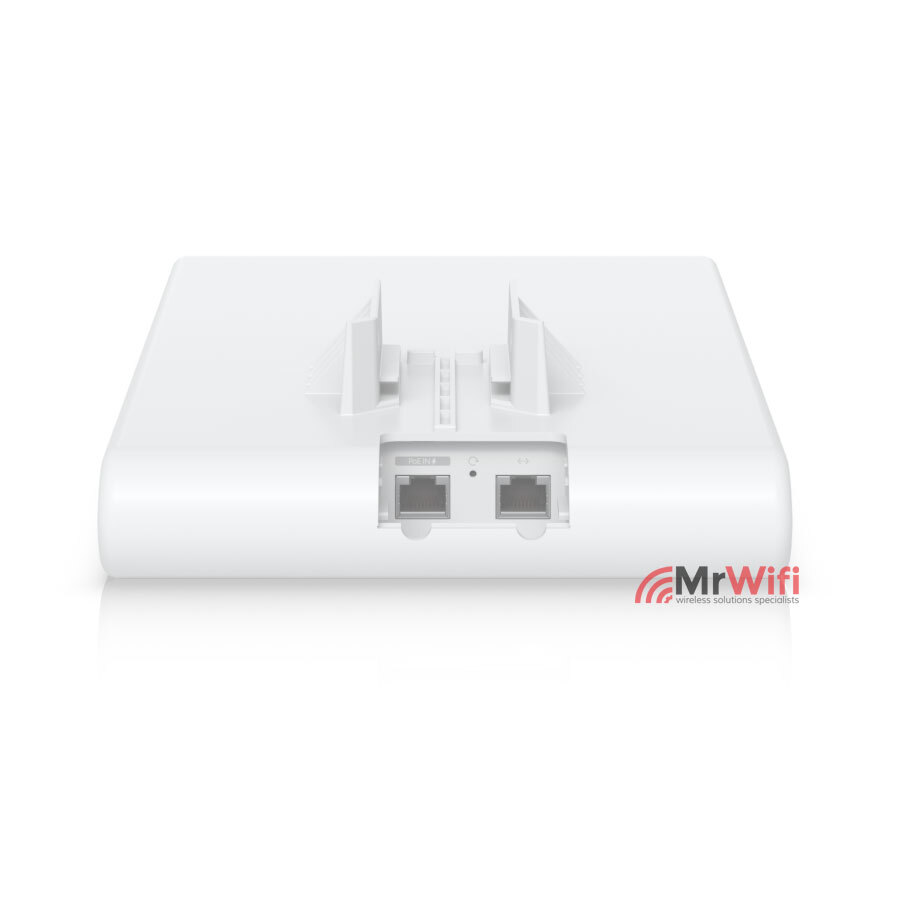

GbE uplink with (1) GbE passthrough port

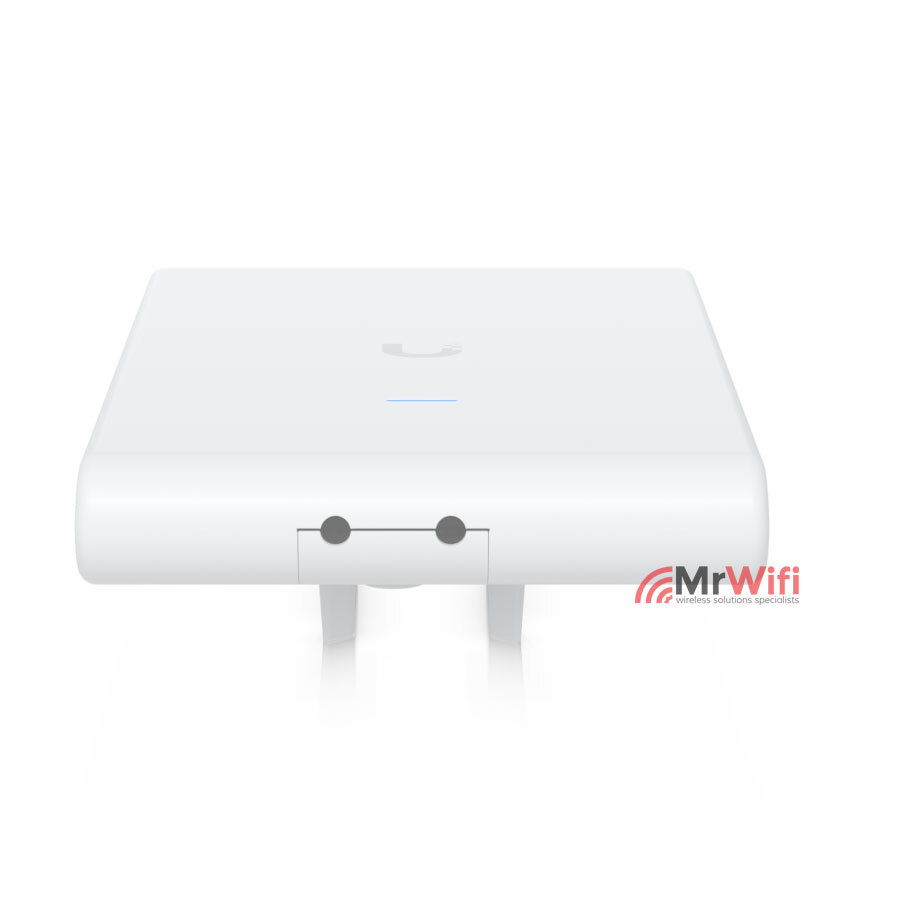

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
(U6-Mesh-Pro)
UniFi Wi-Fi 6 Mesh Pro Access Point
Pack Includes:
- 1 x UniFi U6-Mesh-Pro
- 1 x Mounting Plate Wall
- 1 x Mounting Plate Desktop
- 3 x Wall Screws M3
- 3 x Screw Anchors
- 1 x Back Plate
- 1 x Locking Screw M3
- 1 x 802.3af PoE Adapter
- 2 x Zip Ties
- Quick Start Guide

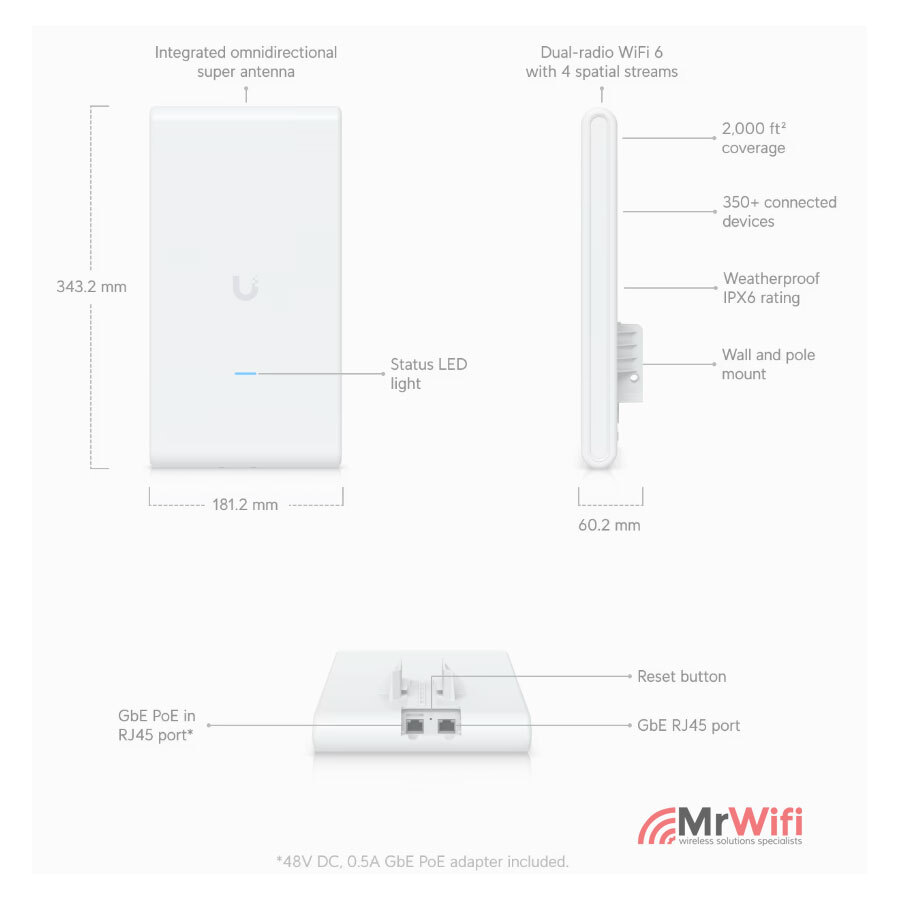

UniFi Wi-Fi 6 Mesh Pro Access Point - Specifications
| Mechanical | |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Weight | 819 g (1.8 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Aluminum alloy, steel |
| Pole mount diameter | 1~2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet WiFi |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included) |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 27 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU MIMO) 2 x 2 (DL/UL MU-MIMO) – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
573.5 Mbps (BW40) 2.4 Gbps (BW160) – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
8 dBi 8 dBi – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 8.1.127 and later |
| SKU | U6-Mesh-Pro |
| Model # | U6-Mesh-Pro |
| Barcode # | NHU-U6-Mesh-Pro |
| Brand | Ubiquiti |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.181m |
| Shipping Height | 0.060m |
| Shipping Length | 0.343m |
| Shipping Cubic | 0.003724980m3 |
| Unit Of Measure | ea |
UniFi Wi-Fi 6 Mesh Pro Access Point - Documents
Installation Guide U6 Mesh Pro Access PointBe The First To Review This Product!
