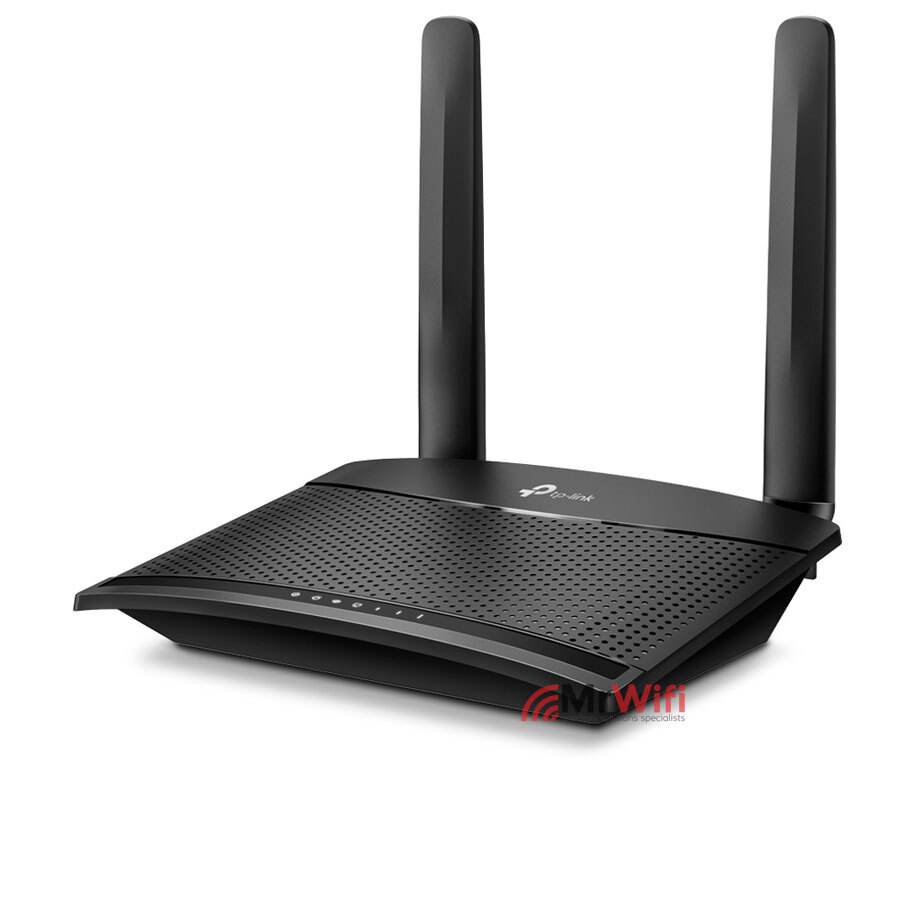

Wireless N 4G LTE Router TP-Link TL-MR100 300Mbps
TPL-MR100
Wireless N 4G LTE Router TP-Link TL-MR100 300Mbps

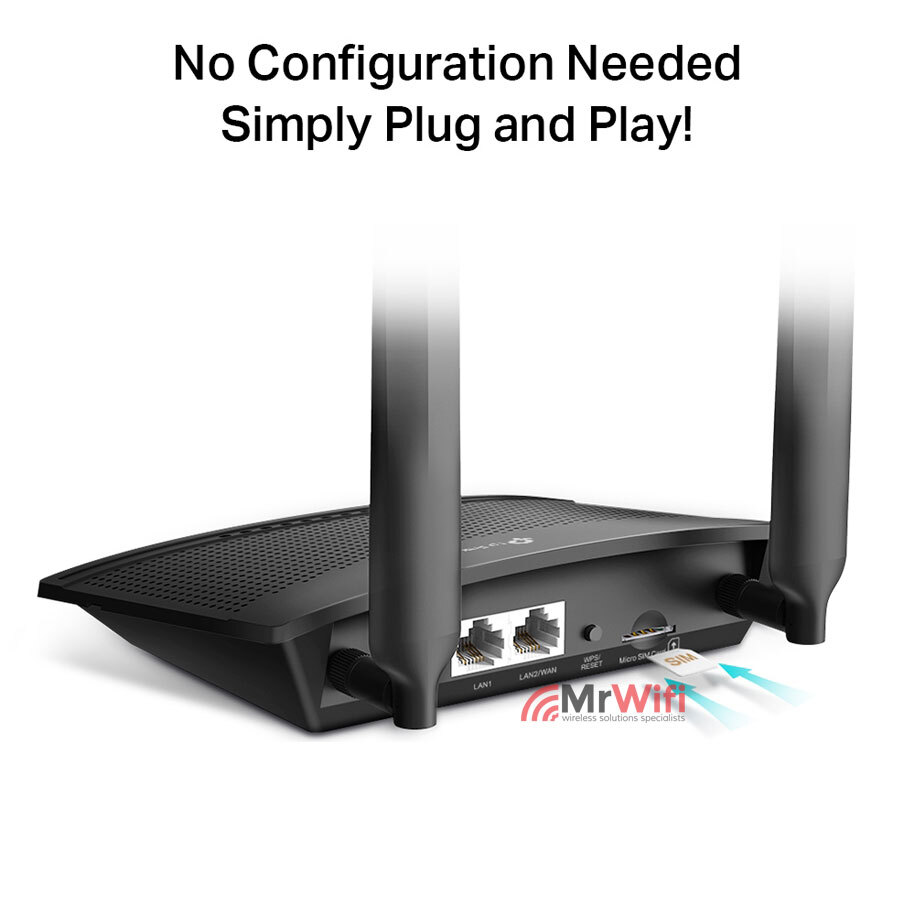

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Features
•Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
• Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas.
• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
*Subject to ISP hardware requirement
.
(TPL-MR100)
Wireless N 4G LTE Router TP-Link TL-MR100 300Mbps
Pack Includes:
- 1 x Wireless N 4G LTE Router TP-Link TL-MR100 300Mbps
- 2 x LTE antennas (SMA male)
- 1 x Power Adapter
- 1 x Ethernet cable (1.5 m)
- 1 x QSG (Quick Start Guide)
Wireless N 4G LTE Router TP-Link TL-MR100 300Mbps - SPECIFICATIONS
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot |
| Button | WPS/Reset Button |
| External Power Supply(EU) | 9V/0.85A |
| Dimensions ( W x D x H ) | 6.06×4.49×1.42 in ( 154×114×36 mm) |
| Antenna | 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm |
| Transmit Power | < 20 dBm (2.4 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES | |
|---|---|
| Security | IPv4 SPI Firewall, IP and MAC Address Binding |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | 300 Mbps Wireless N 4G LTE TL-MR100 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
SHIPPING SPECIFICATIONS
| SKU | TPL-MR100 |
| Model # | TL-MR100 |
| Barcode # | 6.94E+12 |
| Brand | TP-Link |
| Shipping Weight | 0.4560kg |
| Shipping Width | 0.162m |
| Shipping Height | 0.068m |
| Shipping Length | 0.294m |
| Shipping Cubic | 0.003239000m3 |
| Unit Of Measure | ea |
Wireless N 4G LTE Router TP-Link TL-MR100 300Mbps - Documents
Datasheet TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router Be The First To Review This Product!
