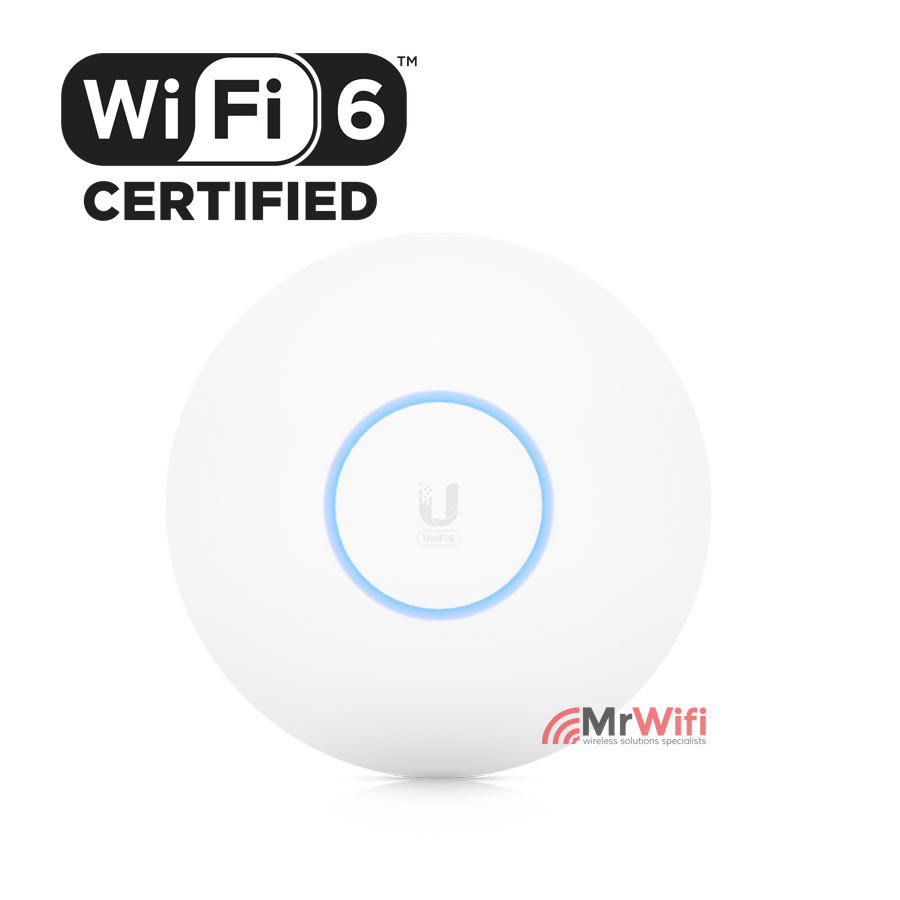

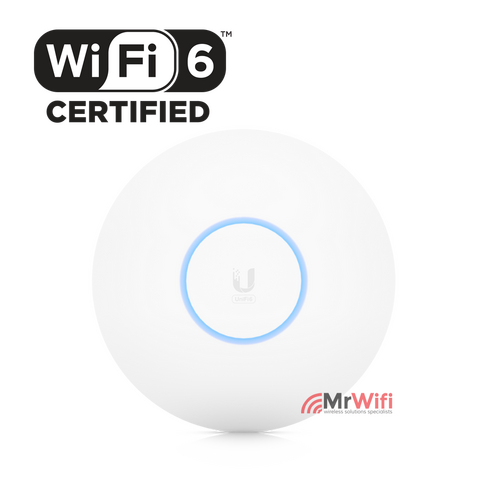

UniFi Wi-Fi 6 PRO AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 573.5 Mbps & 5GHz @ 4.8Gbps
U6-PRO
UniFi Wi-Fi 6 PRO AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz @ 573.5 Mbps & 5GHz @ 4.8Gbps
Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.
The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access pointideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed.
The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application*.
*Managed with the: Dream MachinePro: Version1.9.0-12andlater
UniFi Networkapplication: Version6.1.56 and later
Features:
Dual-band WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
Gigabit Ethernet, powered with 802.3af PoE (PoE injector Sold Separately Here)
Operates at full 4x4 MIMO with 160 MHz bandwidth
300+ concurrent client capacity
Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
*PoE NOT Included (Sold Separately)
(U6-Pro)
UniFi Wi-Fi 6 PRO Access Point
Pack Includes:
- 1 x UniFi U6-PRO
- 1 x Cable Gromet
- 1 x Mountling Template
- 1 x Mounting Plate
- 1 x Ceiling Backing Plate
- 4 x Plate Ceiling Screws
- 4 x Wall Screws
- 4 x Keps Nuts
- 4 x Screw Anchors
- 2 x Locking knobs
- 2 x Locking Screws
- 1 x Hex Key large
- 1 x Hex Key Small
- Quick Start Guide
*PoE NOT Included (Sold Separately)
UniFi Wi-Fi 6 PRO Access Point - Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø197 x 35 mm (Ø7.76 x 1.38") |
| Weight | Without mount: 460 g (1.01 lb) With mount: 600 g (1.32 lb) |
| Enclosure material | Plastic |
| Mounting material | SGCC steel |
| Weatherproofing | IP54 |
| Hardware | |
| Management interfaces | Ethernet Bluetooth |
| Networking interface | (1) GbE RJ45 port |
| Button | Factory reset |
| LEDs | White/Blue |
| Power method | 802.3at PoE+ |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (not included) |
| Supported voltage range | 44 to 57VDC |
| Max. power consumption | 13W |
| Max. TX power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 4.8 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
4 dBi 6 dBi |
| Mounting | Wall/ceiling (included) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero wait DFS | Yes* *Supported with upcoming firmware versions |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| SKU | U6-Pro |
| Model # | U6-PRO |
| Barcode # | 810010076830 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.092m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.003478000m3 |
| Unit Of Measure | ea |
UniFi Wi-Fi 6 PRO Access Point - Documents
Installation Guide U6 PRO Access PointBe The First To Review This Product!
